NMR Lipoprofile vs Standard Lipid Panel: What You're Actually Measuring

Target keyword: NMR lipoprofile vs standard lipid panel | LDL particle number vs LDL cholesterol
Search intent: Educational / Clinical decision support
Silo: Lab Test Interpretation → Cholesterol Particle Size Testing

---

My patient had a "normal" LDL-C on their standard lipid panel, but I'm seeing signs of metabolic syndrome. Should I order an NMR lipoprofile?

Yes — and here's why the distinction matters clinically.

The standard lipid panel measures cholesterol content. The NMR lipoprofile measures particle number and size directly. This isn't a semantic difference — it can change how you manage patients.

Standard Lipid Panel	NMR Lipoprofile
LDL-C (cholesterol inside particles)	LDL-P (total LDL particle number)
HDL-C	HDL-P (HDL particle number)
Total cholesterol	VLDL particle subclasses
Triglycerides	LDL particle size (nm)
—	Small dense LDL detection

The key insight: LDL-C and LDL-P can diverge significantly. A patient can have "acceptable" LDL-C but elevated LDL-P — and actually be at higher cardiovascular risk than their standard panel suggests.

---

Why does LDL particle number matter if my patient's LDL-C looks fine?

LDL-C tells you how much cholesterol is inside LDL particles. LDL-P tells you how many particles are circulating. Think of it like highway traffic: LDL-C measures the total cargo, LDL-P counts the number of trucks. More trucks means more opportunities for particle infiltration into the arterial wall — regardless of how much cargo each one carries.

The landmark Framingham Offspring Study found that elevated LDL-P predicted future cardiovascular events independently of LDL-C levels. Patients with normal LDL-C but elevated LDL-P had significantly higher event rates than those with elevated LDL-C but normal LDL-P. (Otvos et al., Am J Cardiol 2011 — PMID 21802972)

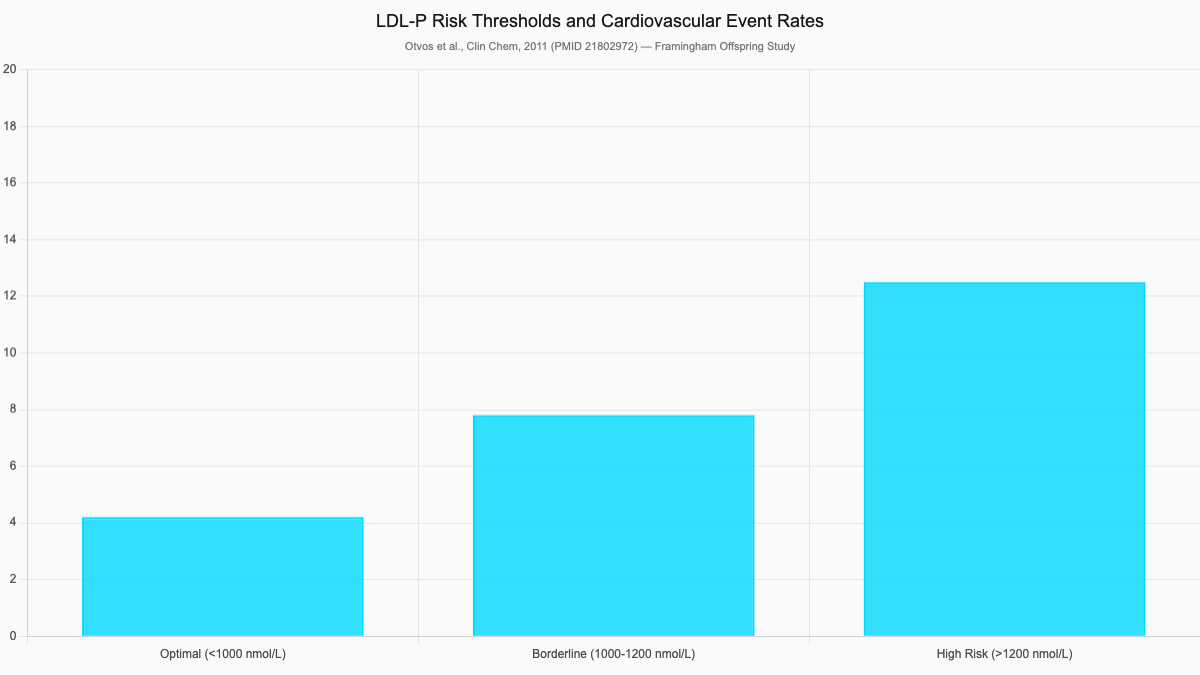

Risk thresholds (based on Framingham data and clinical guidelines):

• LDL-P < 1000 nmol/L: Optimal
• LDL-P 1000–1200 nmol/L: Borderline
• LDL-P > 1200 nmol/L: High cardiovascular risk

---

Should I order NMR on every patient?

No. Reserve it for situations where it changes management:

1. Metabolic syndrome or prediabetes — TG/HDL ratios often predict discordant LDL-P/LDL-C
2. Type 2 diabetes — Particle number adds independent prognostic value beyond standard lipids
3. Family history of premature CVD — Helps identify hidden risk when standard panels look acceptable
4. Refractory LDL-C on statin therapy — Patient has good LDL-C but persistent clinical concern
5. Discordance — LDL-C looks fine, but the overall clinical picture suggests higher risk

(Mora et al., Circulation 2009 — PMID 19204306; Frontiers in Nuclear Medicine 2022)

---

What does a discordant NMR result actually look like in practice?

Patient: 52-year-old male, BMI 31, A1C 6.2%

Standard Lipid Panel:

• LDL-C: 118 mg/dL (borderline)
• HDL-C: 38 mg/dL (low)
• Total Cholesterol: 210 mg/dL
• Triglycerides: 180 mg/dL

NMR Lipoprofile:

• LDL-P: 1450 nmol/L (HIGH — threshold < 1000 optimal)
• Small LDL-P: Elevated
• HDL-P: Low
• LDL Particle Size: 20.1 nm (Pattern B — small, dense)

Interpretation: The standard panel paints a borderline picture. The NMR reveals high particle number and small, dense LDL — a significantly higher risk profile than LDL-C alone suggests. Management: moderate-intensity statin + targeted lifestyle intervention (low-glycemic diet, resistance training, omega-3s 2g EPA+DHA daily).

This is the classic discordant patient: standard lipids look tolerable, NMR tells the real story.

---

What are the practical considerations before ordering?

• Cost: NMR runs $100–$200 out of pocket; insurance coverage varies
• Turnaround: Typically 5–10 business days (specialized lab processing)
• Complementary, not replacement: Always order a standard lipid panel alongside NMR — the two tests inform each other

(Contois et al., Clin Chem 2013 — PMID 23386699)

---

How does NMR change my treatment approach?

High LDL-P may warrant more aggressive intervention even when LDL-C appears "normal":

• Statins lower both LDL-C and LDL-P; prefer high-intensity formulations when LDL-P is elevated
• Lifestyle (weight loss, low-glycemic diet, aerobic + resistance exercise) preferentially reduces LDL-P and shifts particle distribution toward Pattern A
• Niacin preferentially lowers LDL-P relative to LDL-C, though use has declined given cardiovascular outcome trial results
• PCSK9 inhibitors dramatically reduce LDL-P and are appropriate when statin therapy is insufficient

The goal shifts from "normalize LDL-C" to "drive LDL-P below 1000 nmol/L." That's a different clinical target — and one a standard panel can't track.

---

Key takeaways

1. LDL-P is a stronger independent cardiovascular risk predictor than LDL-C
2. NMR reveals discordance that standard panels miss — especially in metabolic syndrome and diabetes
3. Most valuable when the clinical picture doesn't match the numbers
4. Treatment goal shifts: target LDL-P < 1000 nmol/L, not just LDL-C

---

Related:

• → Pillar: Cholesterol Particle Size Testing Guide
• → Hub: Functional Medicine Lab Interpretation
• → HANS Pricing

---

Documenting advanced lipid results and building patient education notes takes time. See how HANS automates functional medicine documentation → /pricing

---

References

1. Otvos JD, et al. "LDL Particle Number and Risk of Future Cardiovascular Disease in the Framingham Offspring Study." Am J Cardiol. 2011;108(8):1123–1128. PMID 21802972. https://pmc.ncbi.nlm.nih.gov/articles/PMC2720529/

2. Mora S, et al. "Lipoprotein Particle Profiles by NMR Compared With Standard Lipids in Predicting Incident CVD in Women." Circulation. 2009;119(7):931–939. PMID 19204306. https://www.ahajournals.org/doi/10.1161/circulationaha.108.816181

3. Contois JH, et al. "Association of Apolipoprotein B and NMR-Derived LDL Particle Number With Outcomes." Clin Chem. 2013;59(5):719–732. PMID 23386699. https://pubmed.ncbi.nlm.nih.gov/23386699/

4. Frontiers in Nuclear Medicine. "Clinical Relevance of Nuclear Magnetic Resonance LipoProfile." 2022. https://www.frontiersin.org/articles/10.3389/fnume.2022.960522/full

---
