LDL Pattern A vs Pattern B: What It Means for CV Risk

What's the difference between LDL Pattern A and Pattern B?

By Peter Kozlowski, MDReviewed by Andrew Le, MDMarch 3, 20268 min read

LDL Pattern A vs Pattern B: What It Means for CV Risk

Target keyword: LDL pattern A vs pattern B meaning | small dense LDL treatment
Search intent: Educational
Silo: Lab Test Interpretation → Cholesterol Particle Size Testing

What's the difference between LDL Pattern A and Pattern B?

Pattern A means your LDL particles are large and buoyant — over 255 Ångströms in size. These bigger particles tend to float around in the bloodstream without easily sticking to artery walls.

Pattern B is the one that warrants attention. These are small, dense LDL particles under 255 Å. They penetrate the arterial wall more easily, oxidize more readily, and get cleared more slowly. That's a bad combination for your arteries.

Pattern B doesn't happen in isolation. It typically shows up alongside metabolic syndrome, insulin resistance, and elevated triglycerides. If you see high TGs with low HDL, think Pattern B until proven otherwise.

(Source: PubMed PMID 9386196 — Lamarche et al., 1997, "Small, dense LDL and the risk of coronary heart disease" + Koz notes on lipid-panel-interpretation)

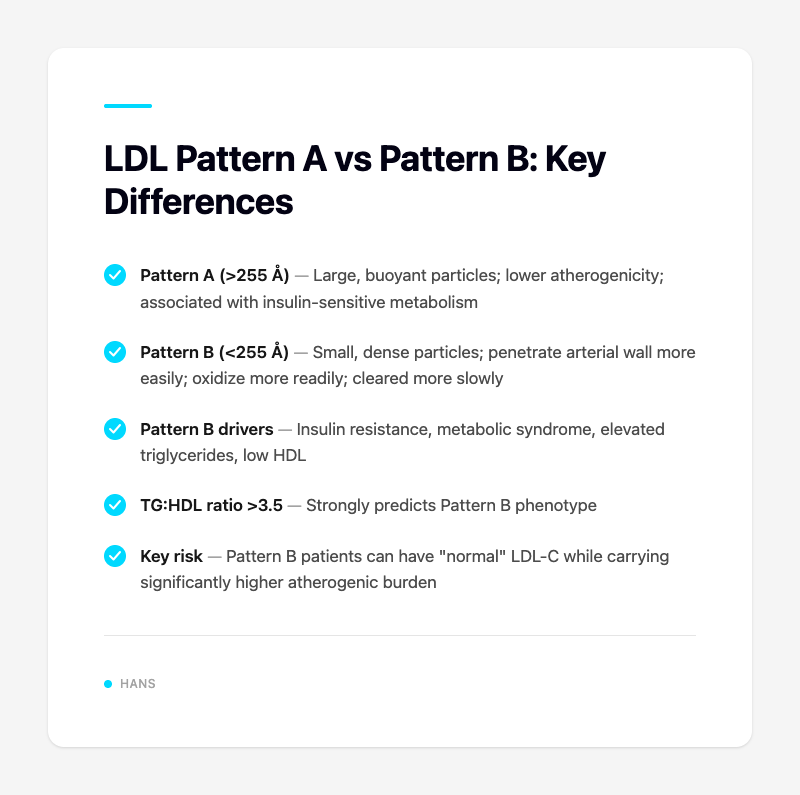

LDL Pattern A vs Pattern B: Key Differences

Does LDL Pattern B actually increase cardiovascular risk?

Yes — the evidence is clear. The ARIC (Atherosclerosis Risk in Communities) study showed that small, dense LDL is an independent risk factor for coronary heart disease, even after adjusting for traditional risk factors like LDL-C, blood pressure, and smoking.

Here's what's clinically relevant: a patient can have "normal" LDL-C on a standard panel but still carry Pattern B with elevated LDL-P (particle number). That's hidden risk. A patient can have acceptable cholesterol numbers in fewer large particles — or lower numbers packed into far more small, aggressive particles. The standard panel can't distinguish between these two scenarios.

This is why Pattern B represents residual risk even in patients on statin therapy. Their LDL-C looks good — but if they're still producing small, dense particles, the atherogenic process continues.

(Source: PubMed PMID 11790214 — Mora et al., 2007, ARIC sub-analysis on LDL particle size + Koz notes on apob-ldl-particles)

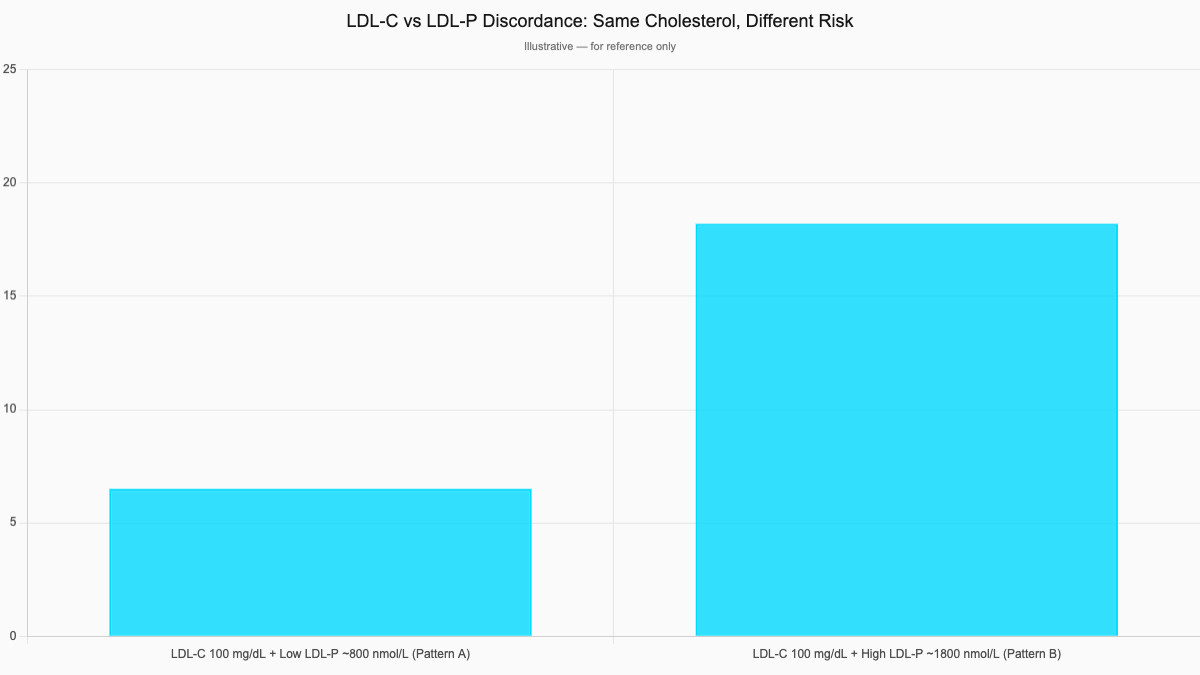

LDL-C vs LDL-P Discordance: Same Cholesterol, Different Risk

Who should you test for LDL particle pattern?

Not everyone needs advanced lipid testing. Here's who benefits:

  • Metabolic syndrome or prediabetes — the cluster of elevated BP, waist circumference, TGs, and low HDL is a Pattern B warning sign
  • Family history of premature CVD — especially when standard panels look unremarkable
  • Triglycerides >150 mg/dL with low HDL — classic metabolic red flag (TG:HDL ratio >3.5 strongly predicts Pattern B)
  • Intermediate ASCVD risk (5–20%) — Pattern B can be a risk enhancer that tips the scale toward treatment
  • Patients on statins with residual risk concerns — doing everything right but still having events

The test that captures this is an NMR Lipoprofile (or similar advanced panel). It gives you LDL particle number (LDL-P) and particle size distribution — information a standard lipid panel simply cannot provide.

Optimal NMR targets (from Koz notes — ldl-particles.md, verified):

  • LDL-P: <1000 nmol/L
  • Small LDL-P: <200 nmol/L
  • ApoB: <80 mg/dL (very high risk) / <100 mg/dL (high risk)

(Source: PubMed PMID 22353590 — Cromwell et al., 2007, NMR LipoProfile guidance + Koz notes on apob-ldl-particles)

How do you treat LDL Pattern B?

Pattern B is a modifiable risk factor — you can shift particle distribution from B toward A. Lifestyle interventions move the needle significantly here.

Lifestyle first:

  • Weight loss — even 5–10% body fat reduction improves particle size distribution
  • Daily movement — doesn't require marathon training; consistent moderate activity matters
  • Low-glycemic, Mediterranean-style diet — reducing refined carbs and processed foods is the highest-yield dietary change
  • Alcohol moderation — alcohol spikes triglycerides, which worsens Pattern B

Supplements with evidence:

  • Omega-3 fatty acids (2–4g/day EPA+DHA) — lowers TGs, may improve particle size
  • Soluble fiber (10–25g/day) — reduces LDL particle number
  • Niacin — can raise HDL and shift particle size, though tolerability limits first-line use

When medications are warranted:

  • Fibrates (fenofibrate) — particularly effective when TGs are high; shifts particle toward Pattern A
  • High-intensity statins — reduce total particle number even when LDL-C effect appears modest
  • Niacin (prescription) — useful for Pattern B but flush side effects are common; not first-line

(Source: PubMed PMID 21247313 — Ginsberg et al. on LDL particle interventions + Koz notes on lipid-panel-interpretation)

Why do standard lipid panels miss Pattern B?

Your standard panel measures LDL-C — the cholesterol content inside those particles. It doesn't tell you:

  • How many particles you're actually carrying (LDL-P)
  • How large or small those particles are
  • Whether you're dealing with Pattern A or Pattern B

A patient can have LDL-C of 100 mg/dL with either:

  • 800 nmol/L large, buoyant particles → lower atherogenic burden
  • 1800 nmol/L small, dense particles → substantially higher risk

Same LDL-C number, completely different cardiovascular risk profile. This discordance — normal LDL-C with elevated LDL-P — affects roughly 30% of patients (from Koz notes, apob-ldl-particles.md). That's why ApoB and LDL-P matter: they directly measure what the arteries care about.

Case Example: 52M With "Normal" Cholesterol

A 52-year-old male presented with fatigue and borderline metabolic syndrome: BP 138/88, waist 42 inches. His standard lipid panel looked unremarkable:

  • Total cholesterol: 195 mg/dL
  • LDL-C: 118 mg/dL (within range)
  • HDL: 38 mg/dL (low)
  • Triglycerides: 180 mg/dL (elevated)

Standard panel interpretation: borderline — watch the triglycerides.

His NMR Lipoprofile told a different story: LDL-P 1450 nmol/L (elevated), Pattern B dominant. Same LDL-C of 118, but he was carrying roughly 30% more atherogenic particles than that number suggested. TG:HDL ratio of 4.7 — consistent with insulin resistance and Pattern B phenotype.

Intervention: Low-glycemic Mediterranean diet, daily 30-minute walking, omega-3s 2g EPA+DHA daily. No medications initially.

6-month follow-up:

  • TG: 180 → 120 mg/dL
  • HDL: 38 → 44 mg/dL
  • LDL-P: 1450 → 1050 nmol/L (trending toward Pattern A threshold)

The standard panel would have told him he was fine. The NMR told us he wasn't — and gave us a trackable endpoint to work toward.

Quick Reference

Factor Pattern A Pattern B
Particle size Large, buoyant (>255 Å) Small, dense (<255 Å)
Atherogenicity Lower Higher
Metabolic association Insulin-sensitive Insulin-resistant, metabolic syndrome
Typical TG/HDL Normal TG, normal HDL High TG, low HDL
LDL-P target <1000 nmol/L Often >1200 nmol/L
Responds to Statins adequate Fibrates, lifestyle, omega-3s

The bottom line

LDL Pattern B is a modifiable cardiovascular risk factor that standard lipid panels routinely miss. Don't let a "normal" LDL-C give you or your patient a false sense of security — especially with metabolic syndrome, prediabetes, or family history of early heart disease in the picture.

Order the NMR Lipoprofile when the clinical picture doesn't match the numbers. Treat Pattern B with lifestyle first, targeted supplements second, and medications when indicated.
